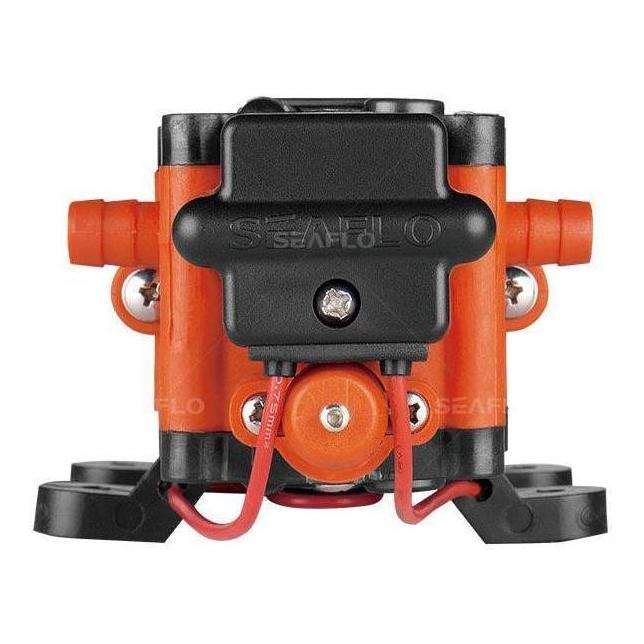

Seaflo 22 Series Freshwater Pump 24V 5LPM @ 100PSI I
The 22-Series Pumps are compact and designed for a wide range of applications including liquid transfer, spraying, circulation, filtration, and dispensing. The 22-series of diaphragm pumps are self-priming, can be run dry without harm, and have an internal bypass feature that reduces pump cycling. It provides 5 litres per minute. Miniature multi-outlet water pressure pump serves 1 or 2 3/8” (10 mm) outlets at any one time. This compact automatic demand water system pump has a built-in pressure switch, which automatically starts and stops the pump when the faucet is opened and closed.
Features and Benefits
- 24V
- 2 chamber diaphragm pump
- Capable of supplying 1-2 fixtures
- Self-priming
- Run dry safe
- Adjustable pressure settings
- 18AWG,9.5" long Leads
- Ignition protected
- Industry-standard mounting pattern
- Meets or exceeds RoHS, SGS, and ISO standards
- 3 Year Warranty
Suitable for
- Yacht / RV / Caravan pressurised water system
- Sprayer fixtures (vehicle-mounted sprayers, electric sprayers)
- Cleaning machines, humidifier, water purification, medical apparatus
- Food beverage filling & liquid transfer
- Solar water system
- Any other pressurisation system
Dimensions
Pump
-
Type 2 Chamber positive displacement diaphragm
pump, self priming, capable of being run dry
-
Control Type Pressure switch & By pass control
-
Max Recommended Temperature 60° C (140° F)
-
Priming Capabilities 6 feet (1.8 m) suction lift
-
Re-start Pressure Shut-off Pressure 100 PSI : 75 PSI ±5 PSI (±0.3 bar)
-
Inlet/Outlet Ports 3/8" (10 mm) hose barb
- Weight 2.4 lbs (1.1 kg)
