Recommended for 16ft vans and under including camper trailers and hybrids

• Mounts to the side of a caravan
• Able to pressurise a caravan in seconds
• Eliminates requirements for structural reinforcing and extensive waterproofing
• Creates more space for solar panels
• Compact and sleek design
• Aesthetically pleasing
• Operates when the van is stationary
• Compact design allows for fitment inside the standard internal cabinet
• Once installed, the device is concealed from the user
• Self-draining
• Not submersible

Premium materials

• Plastics – all plastics exposed to sunlight will be ASA (similar to ABS, but with better UV resistance)
• Screw material – all fasteners are stainless steel
• Aluminium frame construction
• Water-resistant (ip 68 rated)

Powerful

• Power specs – 6 Amps Max current at 12VDC
• Fan can move a maximum air volume of 1000 cubic meters per hour
• Operating temperature between negative 40 and positive 105 Celsius

Inclusions

• 1 x DRS Pro unit
• 1 x Cabinet vent
• 1 x White Switch Panel
• 1 x Filter
• 18 Month Warranty
• Installation Manual

Weight & Dimensions

• Caravan wall cutout size – 240mm x 240mm
• External – 320mm x 320mm square x 250mm
• Internal Dimensions – 230mm x 230mm square x 170mm deep
• Internal vent – 200mm x 350mm, 30mm height
• Weight: 3.8kg (aluminium frame)

Filter Specifications

• The DRS Pro features an all-new air filter design which reduces weight whilst optimizing air flow, durability and performance. It comprises of a rigid automotive grade plastic frame with bonded Polyurethane seals.
• Easy installation and serviceability.
• Washable filter

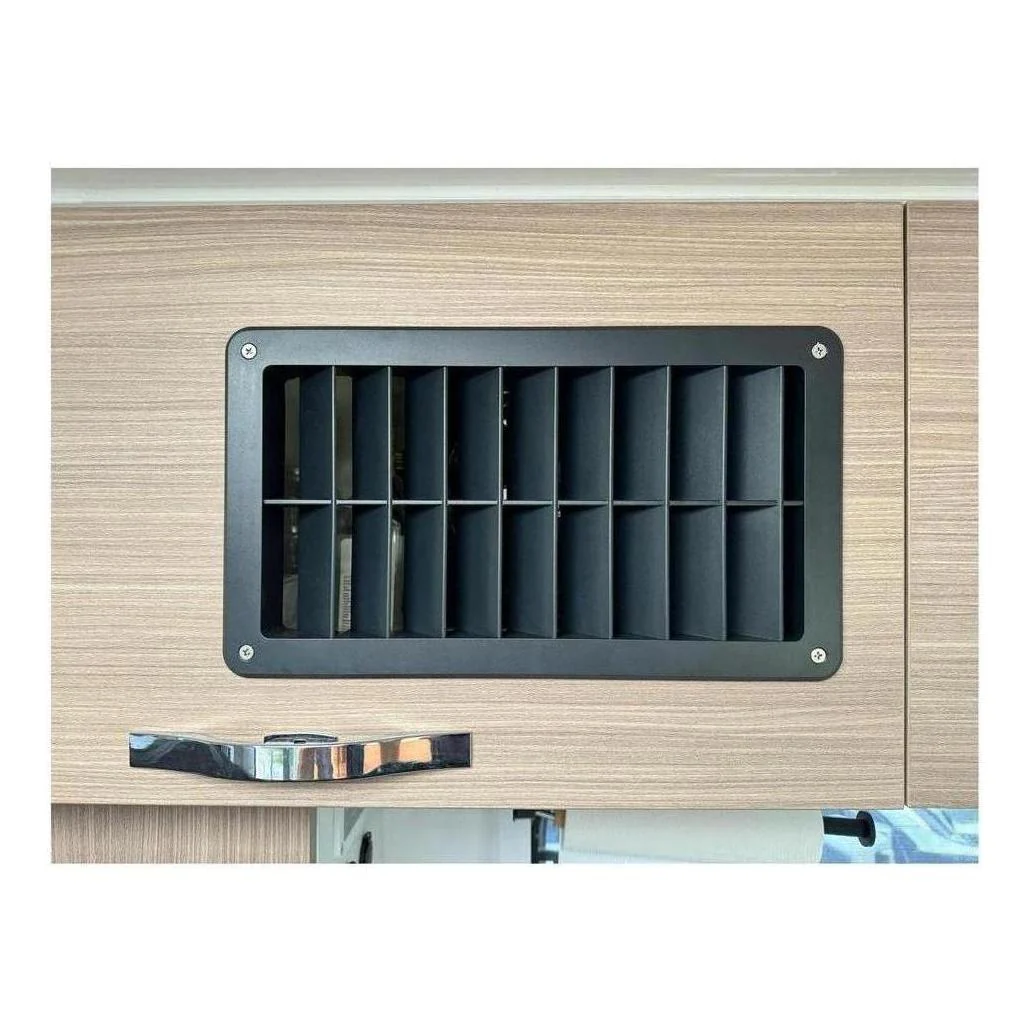

Cabinet Vent Specifications

A new Cabinet Vent designed for side mounting on visible cabinet walls will be supplied with the DRS Pro. It features angled fins which obscure the
internals of the cabinet.
