Wired external shunt for high current power management systems

KEY FEATURES

• High current/external charge  monitoring

• Supports 12V batteries up to 1200Ah

• Rated for 500A of continuous current

• Easy to read LED status indicators

• Simple Installation

• Compatible with Lead Acid and LiFePO4 deep cycle batteries

Battery properties monitored:
Voltage
Current (charging/discharging)
Energy usage (Ah)
Temperature

Monitor all connections direct to battery
The PXShunt500 provides wired battery monitoring for high current BMPRO power management systems.

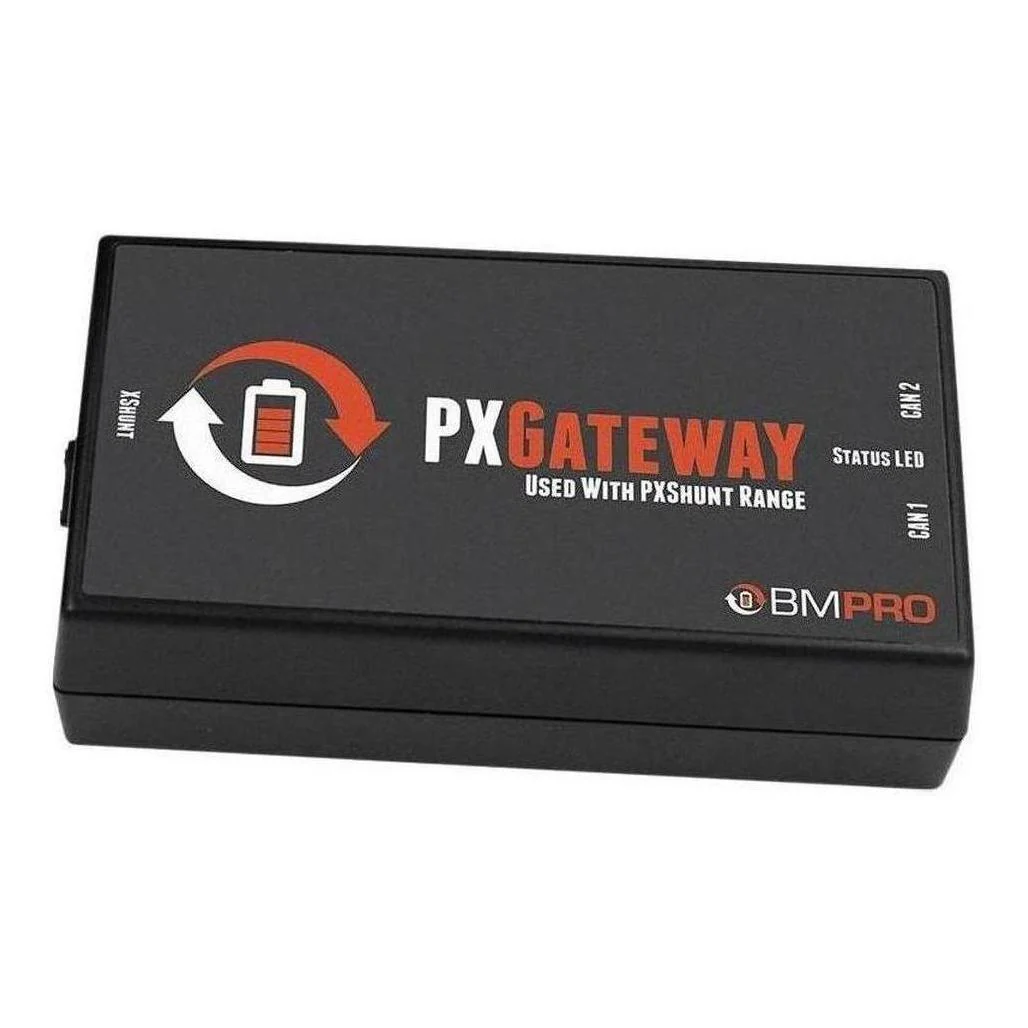

Made up of two components, the XShunt500 and the PXGateway, it is hardwired into your system for performance and reliability. Adding the PXShunt500 to a BMPRO power management system allows high current loads to be directly connected to the battery while maintaining accurate State of Charge and Time Remaining measurements.

The PXShunt500 provides your BatteryPlus35, ASPero and J35 power management systems with additional information on battery usage, so your display’s battery time remaining and state of charge are always up-to-date.

The PXShunt500 communicates via a CAN bus cable, is designed for 12V batteries up to 1200Ah in capacity, features easy to read LED status indicators and is rated for 500A of continuous current.

The PXShunt500 is IP67 rated, making it suitable for external mounting outside your caravan.

Specifications

Specification	Value
Voltage Range	8V to 16V
Voltage Resolution	<20mV
Current Resolution	<200mA
Current Range	500A
Overload Protection	± 800A
Temperature Range	-10° to 50°C
Temperature Resolution	3°C
Capacity Range	1200Ah
Input Voltage	8V to 16V
Quiescent Current Drain (average)	XShunt500: <10mA   PXGateway: <20mA
Operating Temperature	-10° to 50°C
Humidity Operating	≤ 90% RH non-condensing
CAN Cable Length	0.5m
PXGateway Cable Length	2.5m
Dimensions (Approx.)	XShunt500: 156 x 46 x 47.5mm   PXGateway: 90 x 52 x 24mm
Weight (Approx.)	XShunt500: 1kg   PXGateway: 150g
IP Rating	XShunt500: IP67   PXGateway: IP30

FAQ

When would I need a Shunt?

A shunt is required for any load or separate charge source going directly to the battery.

Below is a list of items that are fitted directly to batteries in caravans:

Inverters (of any size), diesel or gas heaters, air compressors, portable solar panel, DC/DC chargers (in any brand), additional fridges, Wi-F, satellite TVs, additional high amp 12v plugs (Anderson plugs, 50amp, 80amp, 100amp, 150amp), additional lighting, electric steps, slideouts, electric water pumps electric jacks, winches.

How long is the cable on the PXShunt500?

The cable between your Power Management System and the PXGateway is 0.5M, the cable between the PXShunt and Gateway is 2.5M.
